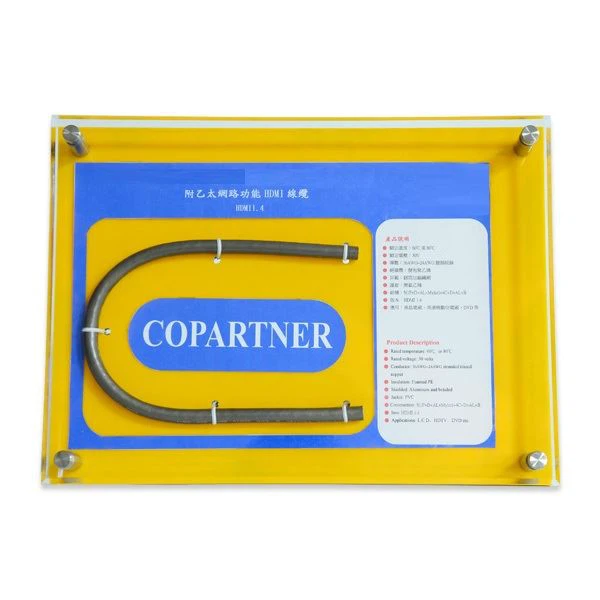

Ethernet Function HDMI Cable
● Rated voltage: 30V
● Conductor: 36AWG ~ 24AWG stranded tinned
Send Inquiry
Product Details ofEthernet Function HDMI Cable
Category:HDMI series
Description:
● Rated temperature: 60 ℃ or 80 ℃
● Rated voltage: 30V
● Conductor: 36AWG ~ 24AWG stranded tinned
Product Introduction
● Rated temperature: 60 ℃ or 80 ℃
● Rated voltage: 30V
● Conductor: 36AWG ~ 24AWG stranded tinned
● Insulator: Polyethylene foam
● Shield: aluminum foil plus braid
● Jacket: PVC
● Structure: 5 (1P + D + AL + Mylar) + 4C + D + AL + B
● Version: HDMI 1.4
● Applications: LCD TV, high-definition digital TV, DVD and the like.
Structure
(AWG) | conductor | insulation ID | No of core | overall diameter | length for use |
36 | 7/0.05 | 0.40 | 4P+1P+5C | 3.8 | 1.0 |
34 | 7/0.06 | 0.47 | 4P+1P+5C | 4.0 | 1.5 |
32 | 7/0.08 | 0.58 | 4P+1P+5C | 5.0 | 2.0 |
30 | 7/0.10 | 0.78 | 4P+1P+5C | 5.5 | 2.5 |
28 | 7/0.127 | 0.98 | 4P+1P+5C | 6.5 | 3.5 |
26 | 7/0.16 | 1.25 | 4P+1P+5C | 8.5 | 5.0 |
24 | 7/0.20 | 1.55 | 4P+1P+5C | 9.5 | 6.5 |
