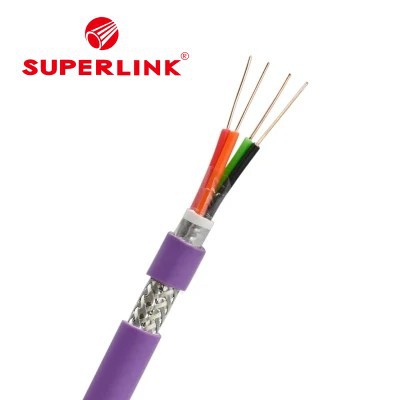

Products Structure

Conductor: Copper 1X2X 22AWG/7

Insulation: Foamed PE
Color: Red, Green
1.Shield: AL

2.Shield: Tinned Copper

Jacket:LSZH

Color: Purple

Technical parameter

Temperature range  LSZH:-40℃~80℃

Test voltage 2000V/min(AC)

Characteristic impedance: 150±15Ω@3-20MHz

Conductor DC resistance (20 ℃:)≤55GΩ/km

Rated voltage:300V

Bending radius:Fixed applications:10D (D=cable diameter)

Features

Flame resistance according to IEC60332-1
Have good performance of resistance to external EMI
Good property of flexibility Small bending radius

Application

Used in the industrial field bus system used in automation and communication technology is suitable for fixed applications.
