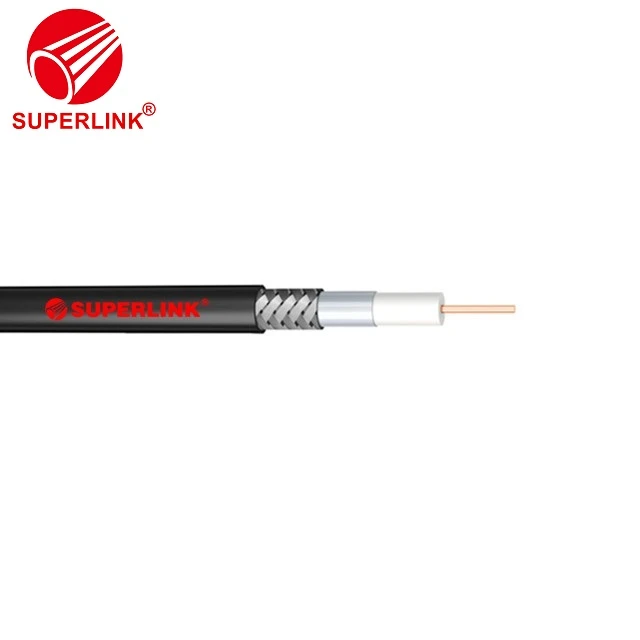

Russian Coaxial Cable SAT 703 For Communication CATV
Quick Details
Place of Origin: Zhe jiang, China
Model Number: 75 ohm SAT703
Inner Conductor: 1.13mm BC
Insulation:4,8mm Foam PE
First Shield: Bonded Aluminum
Second Shield: 50%-95% AL/BC/CCA
Jacket:6.8mm PVC
Color:Optional
Type:Coaxial
Number of Conductors:1
Products Description
Insulation | Material | Diameter(mm) |
First Shield | Bare copper/CCS | 1.02 |
Second Shield | Foamed PE | 4.57 |
Jacket | AL/Cu Foil | 100% |
Power wire conductor | AL/BC Braiding | 40-95% |
Power wire insulation | PVC/PE/LSZH | 6.90 |
CU/CCA | 18AWG | |
PVC/PE | 2.0 |
Electrical Characteristics
Impedance (Ω) | 75±3 |
Capacitance (PF/m) | 52±2 |
Velocity of Propagation(%) | 85.0 |
Return Loss | ≥20 |
Attenuation(@20℃) | Frequency (MHZ) |
55 | 5.2 |
187 | 9.3 |
211 | 10.0 |
400 | 13.5 |
500 | 15.0 |
750 | 18.5 |
860 | 20.0 |
1000 | 21.5 |
1500 | 26.8 |
1800 | 28.9 |
2200 | 32.2 |
3000 | 37.6 |
Packaging Details
1.100m/roll 200m/roll 305m/roll
2. Clear Plastic Bag/ Standard Export Carton
3. According to customers requirement
