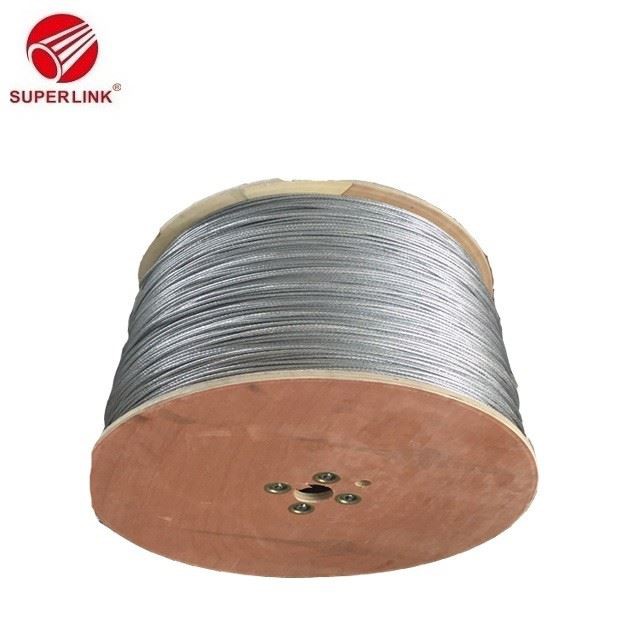

Best Service Semi-finished RG7 In Egypt, Pakistan, Bangladesh
Features
- 100% tested ; - Low Attenuation;
- High reliability ; - Return Loss: >20dB (5-2300MHz) ;
- Lifetime Warranty ; - Impedance: 75+/-3 Ohms;
- CE & RoHS, ETL, UL compliant ; - Velocity of Propagation: 85%
Construction (RG7 Standard shield):
Center Conductor: 1.29+/-0.01mm (16AWG) Solid Copper/Copper Clad Steel
Dielectric: 5.72+/-0.05mm Foam PE
Shield 1st: Optional Single / Double Bonded or unbonded Aluminum Foil
Braid: 40% - 95% Al-Mg or Copper or CCA wires
Jacket: 8.08+0.05mm PVC
Jelly/APD: Per customers' requirement
Messenger (Aeria): per requirement
Characteristics
Sparker Test: 4000VAC Impedance: 75+/-3 Ohm
Capacitance: 54+3pF/m Velocity of Propagation: 85%
Return Loss: 20dB min (5-2300MHz)
Attenuation Sheet
Attenuation Sheet (Coaxial Cables RG7 series) | ||
Attenuation | [@68 o F. (20 o C. )] | |
Frequency (MHz) | Maximum (dB/100 ft. ) | Maximum (dB/100 m) |
5 | 0.47 | 1.54 |
55 | 1.25 | 4.10 |
250 | 2.56 | 8.40 |
300 | 2.82 | 9.25 |
450 | 3.46 | 11.35 |
600 | 4.05 | 13.28 |
750 | 4.57 | 14.99 |
865 | 4.93 | 16.17 |
1000 | 5.32 | 17.45 |
1200 | 5.87 | 19.23 |
1450 | 6.45 | 21.13 |
1750 | 7.05 | 23.10 |
