RG59 Siamese Coax Cable
RG59 Siamese coax cable
Application
High quality RG model coaxial cables 50 or 75ohm is suitable for many applications, including low power, video signal and broadband signals. Many models are available in duct grade, LSF or LSZH versions.

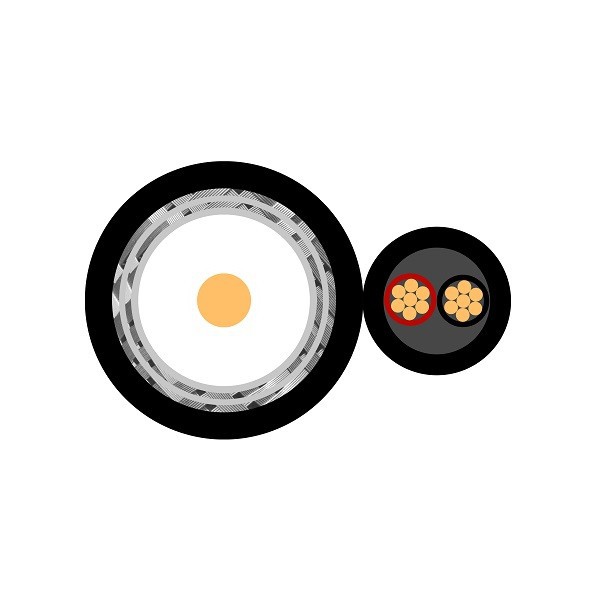

Construction
Construction | Material | Nominal Size |
Inner Conductor | CCS | 0.81mm |
Insulation | FPE | 3.7mm |
1st Al Foil | AL FOIL/COPPER FOIL | |
2nd Braiding | AL/ BC/TC | 50-90% Coverage |
Outer Sheath | PVC/PE | 6.10mm |
Power Cable | CCA | 0.5mm²/0.75mm² |
Advantage
The advantage of coaxial cables over other types of cables is that in an ideal coaxial cable, the signal exists only in the space between the inner and outer conductors. This allows coaxial cables to be installed next to metal objects, such as gutters, without the power losses that occur in other types of cables. Coax cables with multiple shields have less leakage. This property allows for the carrying of weaker signals with less interference from the outside environment.
