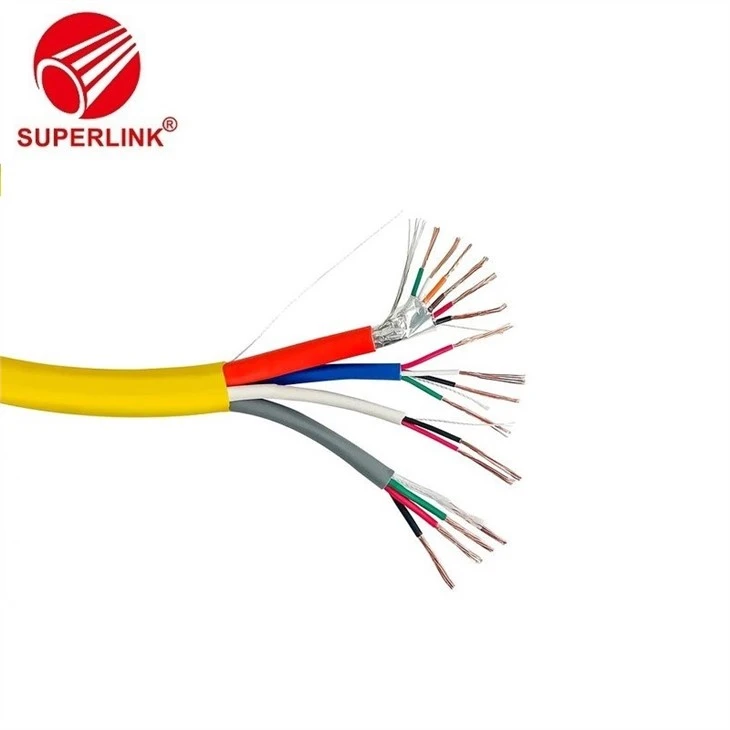

Control Signal Cable For Access Intercom

Access Control Cable
·2C/22 AWG + 4C/22 AWG + 4C/18 AWG + 3P/22 AWG SHIELDED - BUNDLED TYPE

• Each component contains a rip cord
• Overall PVC Riser Rated Jacket
• Applications: Access Control Panels, Security Panels, Card Readers, Sensors, Keypads, Power, Speakers, Alarm Systems
• ETL Listed, RoHs Compliant

22AWG/3P (Shielded)

Conductors: 22AWG / 3 Twisted Pair (6 Conductors)
Material: Stranded Bare Copper Diameter: 7 x 0.24 (±0.004mm)
Insulation Material: PVC
Average Thickness: 0.19 mm
Insulation Diameter: 1.10 (±0.05mm)
Insulation Colors: Pair 1 Black & Red Pair 2 White & Green Pair 3 Brown & Orange
Shield Aluminum Foil Drain Wire: 7 x 0.20 (mm) Stranded TC
PE Tape: Yes

Jacket Material: PVC
Average Thickness: 0.50 mm
Jacket Diameter: 5.40 (±0.10mm)
Jacket Color: White with Yellow
Stripe Rip Cord: Nylon

22AWG/4C

Conductors: 22AWG 4 ConductorsConductors Material: Stranded Bare Copper
Diameter: 7 x 0.24 (±0.004mm)
Insulation Material: PVC
Average Thickness: 0.19 mm
Insulation Diameter: 1.10 (±0.05mm)
Insulation Colors: Black, Red, Green, White

Jacket Material: PVC
Average Thickness: 0.45 mm
Jacket Diameter: 3.60 (±0.10mm)
Jacket Color: White with Red Stripe
Rip Cord: Nylon

22AWG/2C

Conductors: 22AWG 2 Conductors
Material: Stranded Bare Copper
Diameter: 7 x 0.24 (±0.004mm)
nsulation Material: PVC
Average Thickness: 0.19 mm
Insulation Diameter: 1.10 (±0.05mm)
Insulation Colors: Black, Red
Jacket Material: PVC
Average Thickness: 0.45 mm
Jacket Diameter: 3.10 (±0.10mm)
Jacket Color: White with Green Stripe
Rip Cord: Nylon

18AWG/4C

Conductors: 18 AWG 4 Conductors
Material: Stranded Bare Copper
Diameter: 16 x 0.24 mm
Insulation Material: PVC
Average Insulation Thickness: 0.30 mm
Insulation Diameter: 1.70 (±0.05mm)
Insulation Colors: Black, Red, Green, White

Jacket Material: PVC
Average Thickness: 0.50 mm
Jacket Diameter: 5.10 (±0.10mm)
Jacket Color: White with Purple Stripe
Rip Cord: Nylon

OVERALL OUTER JACKET

Jacket Material: PVC
Average Thickness: 0.65 mm
Jacket Color: Green
Diameter over Outer Jacket: 12.00 (±0.20mm)
Rip cord: Nylon

MECHANICAL PROPERTIES

Rated Voltage: 30V
Rated Temperature: 70°C
Test Material: PVC
Before Tensile Strength (Mpa): ≥13.8
Aging Elongation (%): ≥100
Aging Condition (°Cxhrs): 100x168
After Tensile Strength (Mpa): ≥85% of unaged
Aging Elongation (5): ≥50% if unaged
Cold Bend (-20±2°Cx4hrs): No Crack
