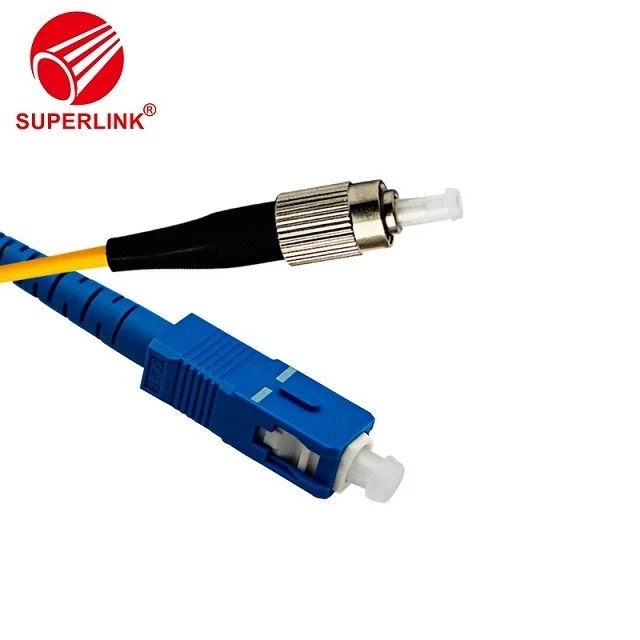

Simplex Single Mode Fiber Patch Cord (FC-SC)
Simplex Single mode
Simplex Single mode Fiber Patch Cord (FC-SC)
Product Description
|
Product Description |
|
|
Range of Mode |
Single mode |
|
Cable Type |
Simplex |
|
Connector Style |
SC, FC |
|
Polish or Ferrule Interface Type |
PC, UPC, APC |
|
Cable Diameter |
0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
|
Outer Jacket |
PVC /LSZH/OFNP |
|
Jacket Color |
SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5 Lemon Green |
|
Durability |
500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
|
Operating Temp. |
-20 ºC to +70ºC/+85ºC (armored) |
|
Storage Temp. |
(-20~+40)ºC |
How to Choose The Right Fiber Optic Cable Type?
PS:The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.
Applications
Cabling system, ODF
Optical fiber communication systems
Optical fiber data transmission
Telecom net
Optical fiber sensor
Optical fiber test equipment
Optical fiber communication system
FTTH, LAN,PON & Optical CATV
