Flat FTTH Fiber Optical Drop Cable Multi Core
Flat FTTH Fiber Optical Drop Cable Multi Core
Product Description:
FTTH Drop Cable is used in high speed and broadband telecommunication applications. It is suitable for both indoor and outdoor applications.

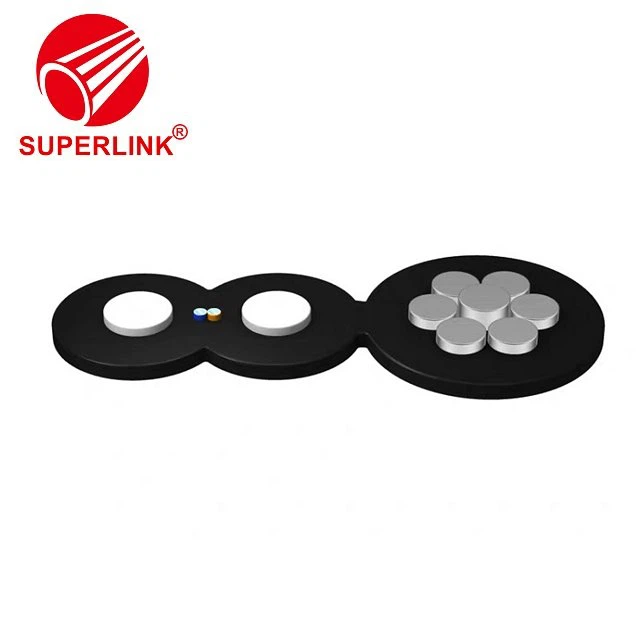

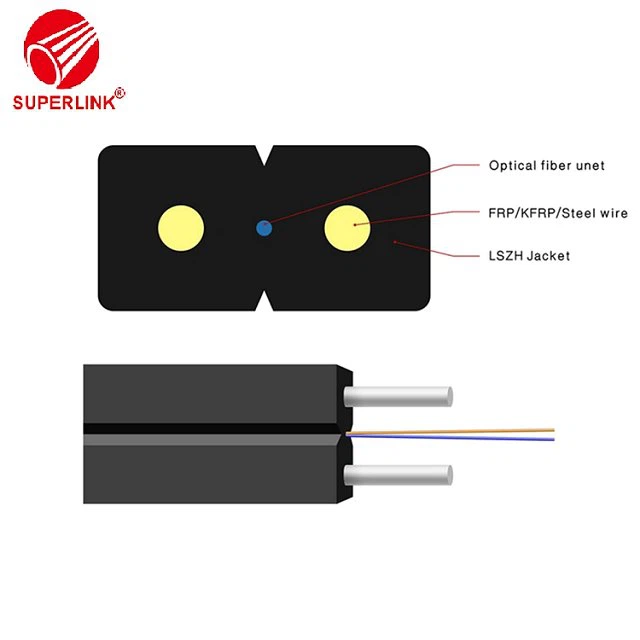

The indoor fiber construction comprises of 1,2,4 cores optical fibers, 2 parallel FRP (Fiber Reinforced Plastic) strength member and LSZH Jacket. Outdoor FTTH cable construction is similar to the indoor cable, except the cable has a supporting wire for aerial installation.
Specification
Fiber Count | parallel reinforcement specification (mm) | Outer Diameter (mm) | Weight (g/M) | max tension（N） | max crush resistance（N） | bending radius（MM） | |||
short time | long time | short time | long time | static | Dynamic | ||||
1~4 | Φ0.45mm | 3.0*2.0mm | 8 | 50 | 100 | 300 | 1000 | 15H | 30H |
6 | Φ0.45mm | 3.5*2.0mm | 9 | 50 | 100 | 300 | 1000 | 15H | 30H |
8 | Φ0.45mm | 4.0*2.0mm | 10 | 50 | 100 | 300 | 1000 | 15H | 30H |
12 | Φ0.45mm | 5.0*2.0mm | 11 | 50 | 100 | 300 | 1000 | 15H | 30H |
Features :
Lightweight, small out diameter; flame-retardant, soft and easy to strip, simple to install and mainenance, Low-bend-sensitivity, environment friendly etc.
Application:
1. Used in access network or as access cable from outdoor to indoor in customer premises network
2. Used as access building cable in premises distribution system, especially used in indoor or outdoor
Characteristics: 1. Coverd by high stength pieces (FRP or Steel)
2. Easy to rip 3. Excellent mechanical and environmental performance. 4. Can be installed conveniently and operated simply.
