FTTH Cable Drop Optical Cable Connector WIFI Network
FTTH cable drop cable optical cable connector WIFI network
Description

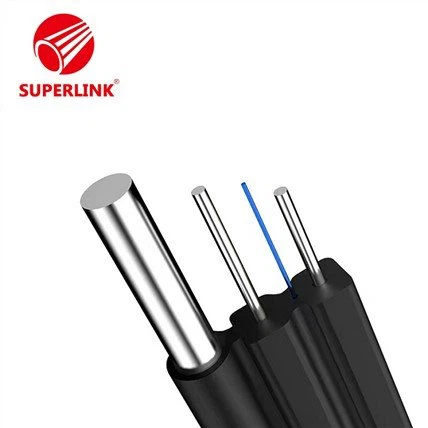

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) or steel wires are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black LSZH sheath.
Construction of Fiber Optic Cable
Structure | Material | SPECIFICATIONS |
Aerial Type (1C, 2C) | ||
Optical fiber | Single Mode | G.657A2 |
Colored fiber | 1F : Blue2F : Blue, Orange | |
Messenger Wire | Zinc coated Steel Wire | Φ1.1±0.1 |
Strength member | Aramid Yarn | |
Outer sheath | Material | Outdoor LSZH |
Diameter | 1F Diameter : 3.0±0.1* 5.8±0.2mmThickenss : 0.75±0.1mm2F Diameter : 3.2±0.1*5.9±0.2mmThickenss(Avr) : 0.55±0.2mm | |
Color | Black (Carbon 2.6±0.2%) | |
Product Description
Test Item | Test Condition | Value(dB) | ||
UPC | APC | |||
Optical Performance | Insertion Loss | 1310nm LED light source | <0.3 | <0.3 |
Return Loss | 1310nm LED light source | >50 | >60 | |
Environmental Performance (Max. Insertion Loss change) | High temperature | +85°C168 hours | <0.2 | |
Temperature Cycle | -40-+75°C, 21 Cycles 168 hours | <0.2 | ||
Humidity Aging | +75°C, 95%R.H,168 hours | <0.2 | ||
Humidity/Condensation Cycling | -10°C-+65°C, 90%~100%RH, 14 cycles 168 hours | <0.2 | ||
Mechanical Performance ( Max. Insertion Loss change) | Vibration | 10-55Hz, 1.5mm(p-p) | <0.2 | |
Flex | 0.9kg,-90o~+90o repeat for 100 cycles | <0.2 | ||
Torsion | 1.35kg,90o~+90o ,10times | <0.2 | ||
Withstand tensile | 90N,10min | <0.2 | ||
Drop | H=1.5M,Total of 8 drops | <0.2 | ||
Exchangeability | Randomly | <0.2 | ||
Durability | 500 times | <0.2 | ||
