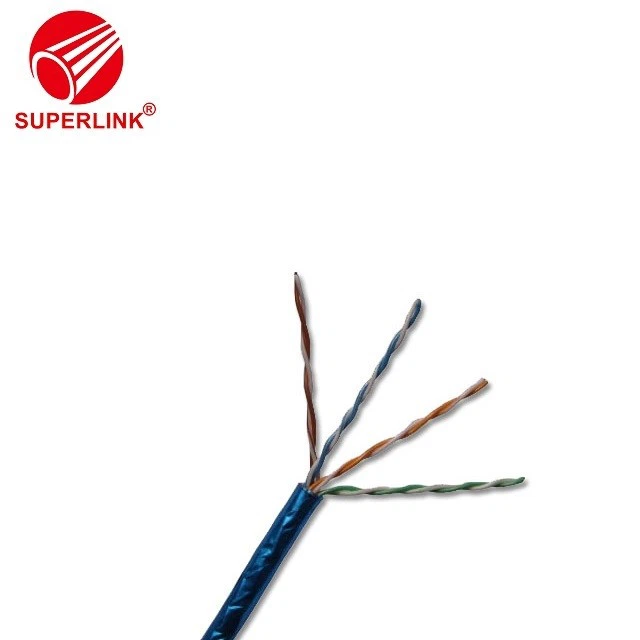

Name: China Custom All Copper Network Cable 300 Meters Box High-speed Manufacturers, Suppliers - Factory Direct Wholesale - Hanyang
Brand: SUPERLINK
SKU: 135969300

Quick Details

Place of Origin:Zhejiang, China

Brand Name:SUPERLINK

Model Number:cat5e cable

Number of Conductors:8

Type:Cat 5e

Application:Internet Communication

Product name:Cat5e outdoor Network Cable

Conductor:BC

Insulation:HD-PE

Inner Jacket:PVC

Outer Jacket:LDPE

Shielded:AL-Foil 125%(min)Coverage

Flame Retardancy Standard:CM,CMR

Length:305m 1000ft
Product Description

· Product standard:
The production standard for anti-flaming and fire-resistant cables is GB/T19666-2005,GB/T5023-2008,JB/T8734-2012

· Main of cables features
1,Uo/U is 450/750V,300/500,
2,Long-term allowable temperature of the cable:The allowable temperature of 105 Cable should not exceed 105℃, the allowable temperature of other models should not exceed 70℃.

· Application:

Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power plant, householdelectrical applance,insurment and telecommunication equipment.

Frequency MHz	Return loss dB	Attenuation dB/100m	NEXT dB	ACR dB	PSNEXT dB	ELEFXT dB/100m	PSELEXT dB/100m	Delay ns/100m
0.772	19.4	1.8	67	65	64	66	63	575
1.0	20.0	2.0	65.3	63.0	62.3	63.8	60.8	570
4.0	21.0	4.1	56.3	52.0	53.3	51.7	48.7	562
6.0	24.5	5.8	51.8	46.0	48.8	45.7	42.7	546.7
10.0	25.0	6.5	50.3	44.0	47.3	43.8	40.8	546.4
16.0	25.0	8.2	47.3	39.0	44.3	39.7	36.7	543
20.0	25.0	9.3	45.8	37.0	42.8	37.7	34.7	542
25.0	24.3	10.4	44.3	34.0	41.3	35.8	32.8	541.2
31.25	23.6	11.7	42.9	31.0	39.9	33.9	30.9	540.4
62.5	21.5	17	38.4	21.0	35.4	27.8	24.8	438.6
100.0	20.1	22	36.3	13.0	32.3	23.8	20.8	537.6

FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
