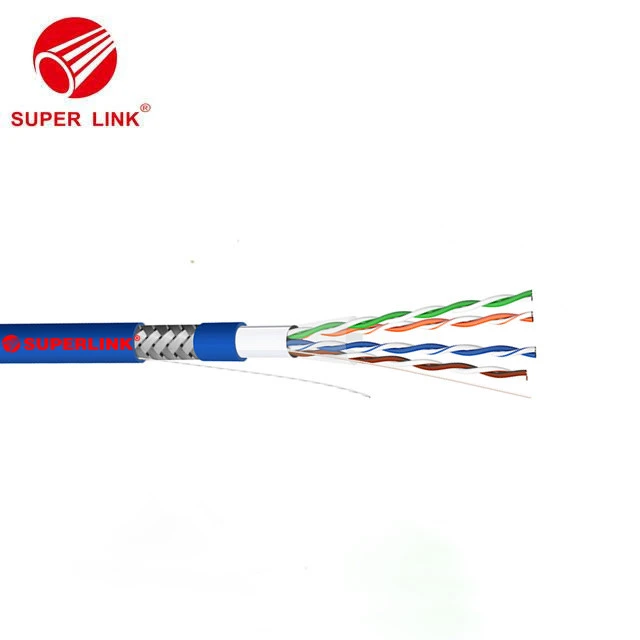

HOT SALE FLUKE PASS SFTP CAT5E Lan Cable

Conductor

CCA or 24AWG Solid Copper

Number of Conductors

8

Insulation Material

HDPE

Shielding

PET/ Aluminum Foil and Tinned copper braiding

Application

Lan cable

Jacket

PE

Operating temperature

-60 ° C - +70 ° C

Standard

EIA/TIA 568B.2 & ISO/IEC 11801/ ASTM / BS

Certificate

CE/ISO/RoHS Approved

Resistance Unbalance

Max. 2%

Insulation Resistance

150 ohm/KM

Mutual Capacitance

Max. 5600pF/100m

Capacitance Unbalance

Max. 330pF/100m

Impedance

100+/-15 ohm

Spark Test

2000V

Velocity of Propagation

67%

Temperature Range

-20 up to +75° C

Tensile Strength

Min 1.68kg/mm²

(Mhz)

(dB/100M)

(dB)

(dB)

(dB/100m)

1MHz

2.0

20

65.3

63.5

4MHz

4.1

23

56.3

54.2

8MHz

5.8

24.5

52.4

50.5

10MHz

6.6

25

51.3

49.2

16MHz

8.2

25

49.3

47.4

20MHz

9.3

25

48.8

46.9

25MHz

10.4

24

45.3

43.4

31.25MHz

11.7

23

43.0

41.8

62.5MHz

17.0

21

39.2

37.2

100MHz

22.0

20

36.3

34.4
