LAN Cable 4 Pair FTP Cat5e
2. Product process: reasonable small twist pitch is provided, which has improved the transmission performance and stability performance effectively;
Send Inquiry
Product Details ofLAN Cable 4 Pair FTP Cat5e

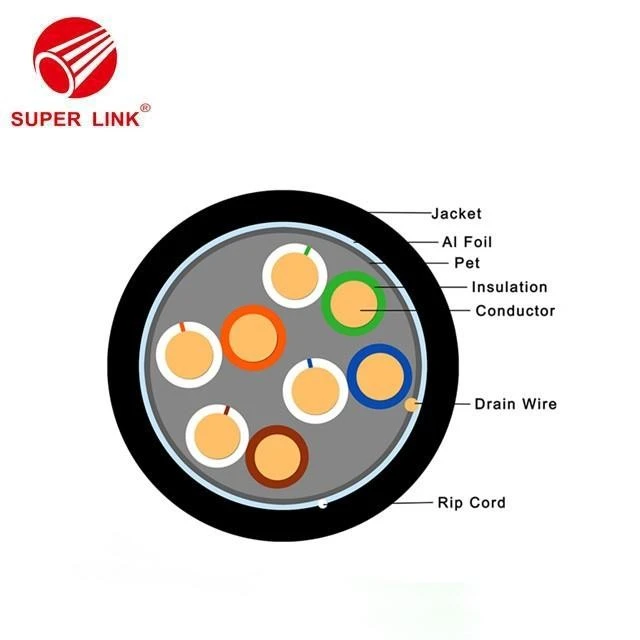

Structure
Diameter of Conductor | 24AWG |
| 0.505±0.005mm | |
Material of Conductor | 99.99% oxygen-free copper |
Diameter of Insulation | 0.85±0.05mm |
Material of Insulation | HDPE |
Number of Pairs: 4 Pairs | Pair1: Brown*White/Brown Pair2: Blue*White/Blue |
| Pair3: Orange*White/Orange Pair4: Green*White/Green | |
Rip-cord | 1*3D |
Flammability Grade | CM |
Thickness of Jacket | 0.55±0.05mm |
Diameter of Jacket | 5.1±0.2mm |
Material of Jacket | 75° PVC |
Color of Jacket | Blue |
Package of Cables | 305m/Box |
Mini Bending Radius | 8D |
Features
1. Product performance: passes through requirements of ANSI/TIA/EIA 568C.2 100MHZ bandwidth test;
2. Product process: reasonable small twist pitch is provided, which has improved the transmission performance and stability performance effectively;
3. Product appearance: sheath can be chosen from PVC, PE and LSZH; multiple colors can be chosen;
4. Sign system: cable length sign is provided to reduce waste;
