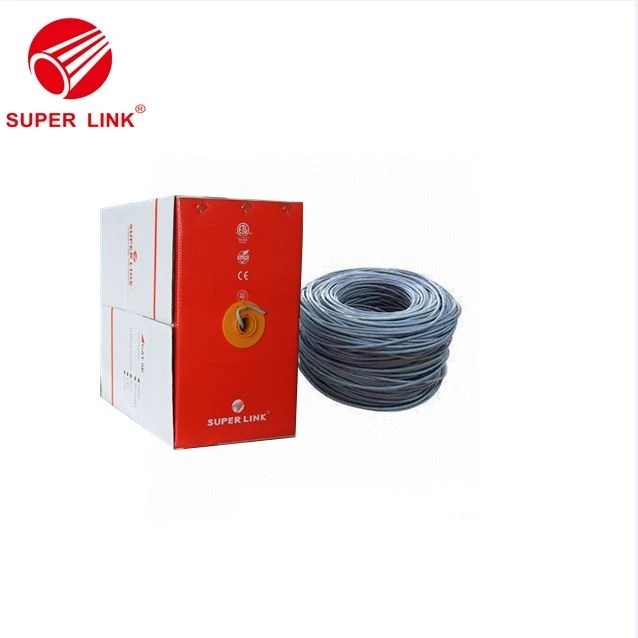

Professional Equipment Tested Cate5e LAN Cable
Product Description：
Conductor Material:TC/BC/CCA
Insulation:HPDE
Shiled:UTP/FTP/STP/SFTP /SSTP
Number of Conductors:8
Jacket:PVC/PE
Test:100% CONTINUITY
Usage:Computer/Switch/Hubs/Router
Certification:(US) UL/CUL ETL (EURO) CPR (CHINA) CCC CE ISO900 SGS ROHS REACH
Brand:Superlink
Made: Zhejiang,China
Technical Performance:
Attenuation | RL | Next | PS Next | |
(Mhz) | (dB/100M) | (dB) | (dB) | (dB/100m) |
1MHz | 2.0 | 20 | 65.3 | 63.5 |
4MHz | 4.1 | 23 | 56.3 | 54.2 |
8MHz | 5.8 | 24.5 | 52.4 | 50.5 |
10MHz | 6.6 | 25 | 51.3 | 49.2 |
16MHz | 8.2 | 25 | 49.3 | 47.4 |
20MHz | 9.3 | 25 | 48.8 | 46.9 |
25MHz | 10.4 | 24 | 45.3 | 43.4 |
31.25MHz | 11.7 | 23 | 43.0 | 41.8 |
62.5MHz | 17.0 | 21 | 39.2 | 37.2 |
100MHz | 22.0 | 20 | 36.3 | 34.4 |
Equipments:
1. FLUKE Network tester
2. Agilent Network Analyser
3. CTS 650M Symmetrical Digital Cable Testing System
4. Salt spray generator
5. Sheath Tensile properties Tester
6. Actual cable transmission test (video)
