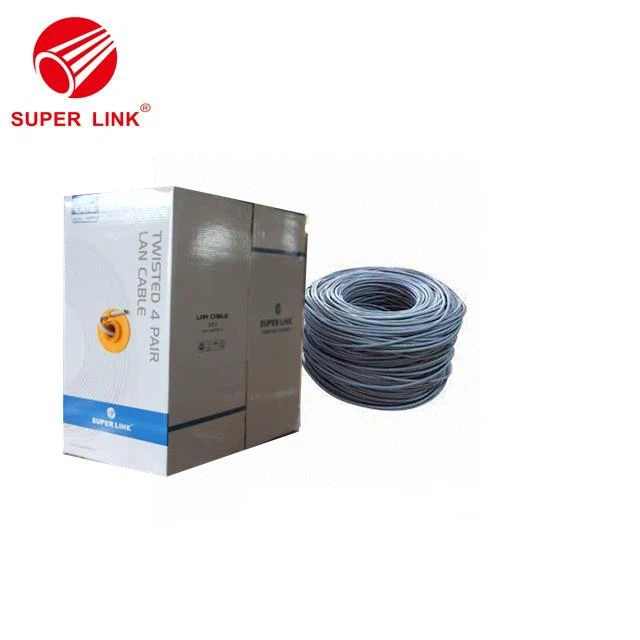

CAT6A RJ45 SFTP Ethernet LAN Cable
Product range
1.Security monitoring products
2.Integrated wiring products
3.Low voltage products of computer peripherals, such as audio lines, video wire, and cable
4.connectors and cable accessories
Physical Properties
Cable pair quantity | 4 pairs |
Conductor material | Anaerobic round copper (purity 99.99%) |
Wire gauge | 23AWG |
Outside diameter of cable | 7.1 |
Insulation material | HDPE (physical foaming) |
Sheathing material | PVC (polyvinyl chloride), PE (polyethylene), LSZH (Low Smoke Zero Halogen) |
Minimum curve radius | 10 times outside diameter of cable |
Working temperature | -20ºC~+70ºC |
Transmission Properties
Frequency(MHZ) | Return loss(dB) | Attenuation(dB /100m) | NEXT(dB) | PS NEXT(dB) | ||
4.00 | 23.0 | 3.8 | 66.3 | 63.3 | ||
8.00 | 24.5 | 5.3 | 61.8 | 58.8 | ||
10.00 | 25.0 | 5.9 | 60.3 | 57.3 | ||
16.00 | 25.0 | 7.5 | 57.2 | 54.2 | ||
20.00 | 25.0 | 8.4 | 55.8 | 52.8 | ||
25.00 | 24.3 | 9.4 | 54.3 | 51.3 | ||
31.25 | 23.6 | 10.5 | 52.9 | 45.9 | ||
62.5 | 21.5 | 15.0 | 48.4 | 45.4 | ||
100 | 20.1 | 19.1 | 45.3 | 42.3 | ||
200 | 18.0 | 27.6 | 40.8 | 37.8 | ||
250 | 17.3 | 31.1 | 39.3 | 36.3 | ||
300 | 17.3 | 34.3 | 38.1 | 35.1 | ||
400 | 17.3 | 40.1 | 36.3 | 33.3 | ||
500 | 17.3 | 45.3 | 34.8 | 31.8 | ||
