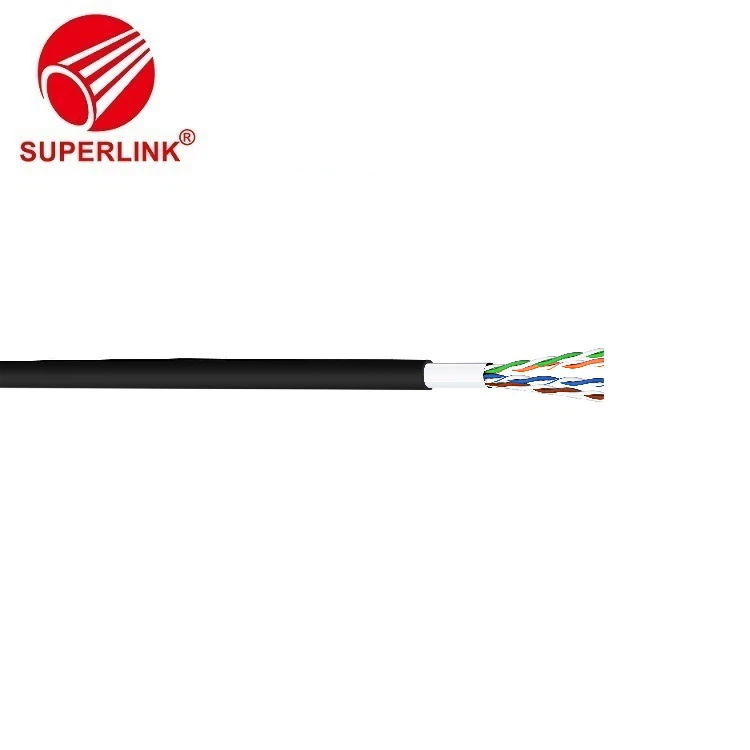

Single Shielded Computer Cable FTP CAT5E Low Loss
Single shielded computer cable FTP CAT5E low loss
Material Instruction
1.CCA or 24AWG Soft Plain Copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE;
4.Eco-friendly PVC/LSZH Jacket , high-temperature resistance,long working life.

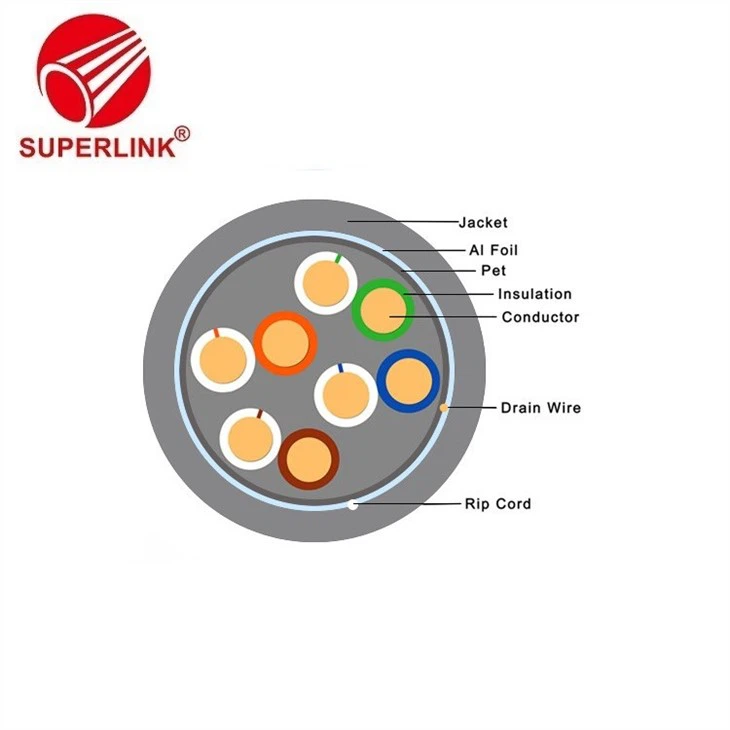

Configuration
Inner conductor | Material | Soild Bare Copper/CCA |
Diameter | 0.5 ± 0.01mm (24AWG) | |
Insulation(Dielectric) | Material | Color-coded PE (Polyethylene) |
Thickness | ≥ 0.18mm | |
Diameter | 0.91± 0.01mm | |
Twisted pair | 4Pairs | Pair 1 : Blue, White / BluePair 2 : Orange, White / OrangePair 3 : Green, White / GreenPair 4 : Brown, White / Brown |
Rip Cord | N/A | Yes |
Shielding | Material | AL FOIL |
Outer Jacket | Material | PVC(PE/LSZH) |
Thickness | ≥ 0.50mm | |
Nominal O.D | 5.0mm ± 0.20mm | |
Options: Jelly Compound, Jacket: UV, FR, Rohs complied. | ||
FAQ
1.Q:Are you a factory or trading company?
A: We are a Factory, Distributor and Trading Company.
2.Q:Where is your factory located? How can I visit there?
A:Our factory and office is located in Ningbo City, China.
You can fly to Ningbo airport or Shanghai airport, from home or abroad,
Warmly welcome to visit us!
3.Q: Can you do OEM?
A: Yes, we can do OEM products. It's no problem.
4.Q:How can I get some samples?
A:We are honored to offer you samples.
5.Q:How does your factory do regarding quality control?
A:Quality is priority.We always attach great importance to quality controlling for to the very end. Our factory has gained CE,ROHS,SGS authentication.
