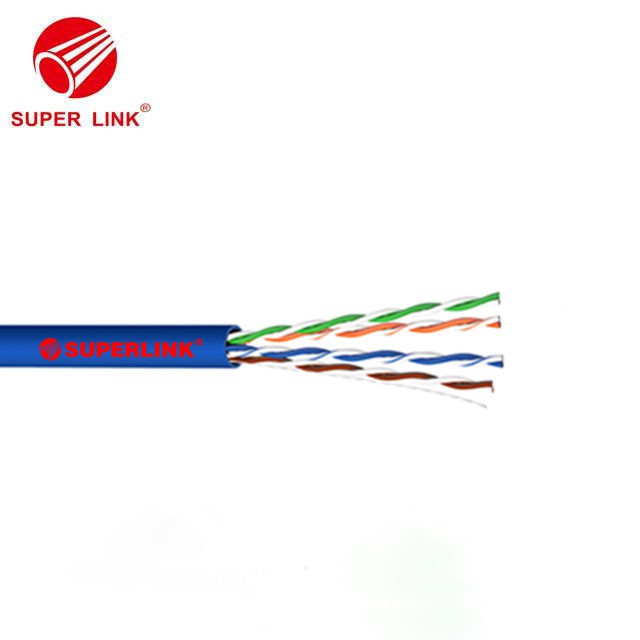

24AWG UTP Cat5e Network Cable with Fluke Test
AWG: 24
4 Twist pair: 8 cores
Send Inquiry
Product Details of 24AWG UTP Cat5e Network Cable with Fluke Test
Product Introduction
The CCTV Video Security RG59 Coaxial Cable, 20pairs 24AWG Indoor Telephone Cable, CAT5E UTP RJ45 CRYSTAL HEAD we produced has hundreds of specifications and models and is applicable to a wide range of industries, which can greatly meet the requirements of customers for product specifications and quality. We are highly honored to cooperate &develop with international partners by the scientific management, excellent quality, novel design, reasonable price and perfect service. Advanced technology and modernized management is our goal , which allows us in the forefront of the industry. Sincerely looking forward to develop with you together! We will continue to build and expand our established strong dealer network to provide excellent product supply and service around the world.
Conductor
Conductor | 7*0.18 Copper/CCA |
AWG | 24 |
4 Twist pair | 8 cores |
Insulation | HDPE |
Nom. Thickness (MM) | 0.2 |
Jacket | PVC |
Nominal Transmission Characteristics
Frequency | RL(min) | IL(max) | DOP(max) | Delay Skew (max) | Next (min) | PSNEXT (min) | ACR-F (min) |
(MH)z | (dB) | (dB/100M) | (ns/100M) | (ns/100M) | (dB) | (dB) | (dB/100m) |
1 | 20.0 | 2.2 | 570 | 45 | 65 | 62 | 61 |
4 | 23.0 | 4.2 | 552 | 45 | 56 | 53 | 48 |
20 | 25.0 | 9.3 | 542 | 45 | 45 | 42 | 34 |
62.5 | 21.5 | 17.0 | 538 | 45 | 38 | 35 | 25 |
100 | 20.1 | 22.0 | 537 | 45 | 35 | 32 | 21 |
Note: The above transmission performance for the 100m.20±2℃ under the conditions tasted | |||||||
Electrical Characteristics
■ Max. conductor DC Resistance(/km) #24:93.8
■ Min. Insulation resistance(/km) PE:100M
■ Dielectric strength AC-500V/1 MIN NO Breakdown
■ DC Resistance Unbalance: Max： 2%
■ Pair-to-Ground Capacitance Unbalance: 330(pF/100M)
■ INPUT IMPEDANCE: 4-100MHz 100+/-15ohm
■ MEAN CHARATRERISTIC IMPEDANCE@100MHZ: 100+/-5 OHMS
■ NOMINAL VELOCITY OF PROPAGETION (NVP) 68+/-2%
■ PROPAGATION DELAY 100MHZ ≥537.6ns/100M
Application
1. Category 5(Cat5E) cables are structed cabling for computer networks such as Ethernet
2. Category 5E supports a frequency range of up to 100MHZ and is designed for transmission speeds of up 1 gigabit per second (gigabit Ethernet).
We constantly update production line equipment, comprehensively improve production innovation capabilities, improve product quality, and do a good job in diversified management of 24AWG UTP Cat5e Network Cable with Fluke Test. Focusing on the global market, building an international brand, continuously improving our quality level, and maximizing customer profits are our constant commitment and eternal pursuit. We recognize the company's corporate culture and promote the company's development through enthusiasm, courage and responsibility.
