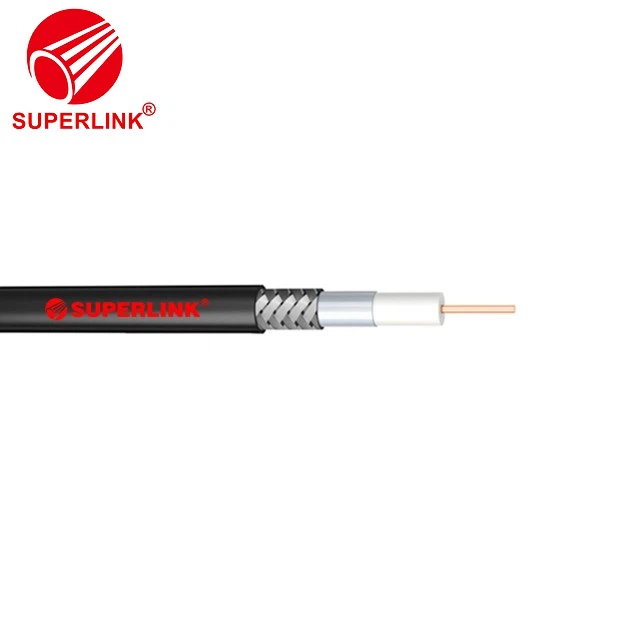

Coaxial Cable Rg59+Power Cable CCTV Camera Video Siamese Security Communication
Product Introduction
As a manufacturer engaged in JIS Standard 5C-2V Coaxial Cable, Great 0.12 Mm Al-mg Wire, Flexible Coaxial TV Cable LMR100 for many years, we have been working hard to explore and research, and develop new products suitable for national standards. After years of development, we have established industry-leading product research and development capabilities, manufacturing capabilities and marketing capabilities. We are wanting ahead to hearing from you before long. Adhering to the management tenet of 'Managing Sincerely, Winning by Quality', we try our best to provide excellent products and service to our clients.
Feature
Item | CCTV CABLE RG59 with DC for CCTV Camera |
Inner Conductor | 20AWG,0.81mm CCS |
Insulation | 3.66mm Foamed PE |
Shield | Bonded Al Foil |
Braid Shield | 128x0.12mm AL wires Braid (85% Coverage) |
PVC Jacket | 6.1+0.1mm PVC Jacket |
Power Cable | 7x0.37mm CCA+1.8mm Red PE |
| 7x0.37mm CCA+1.8mm Black PE | |
Outer Jacket | 4.0+0.1mm PVC Jacket |
Description
High-physics foamed coaxial cable is a semi-air insulated cable. The inner conductor is made of high-quality oxygen-free copper wire (or copper-clad aluminum wire or copper-clad steel wire);The mutually closed air holes, the adhesion between the insulation and the inner conductor is firm; the outer conductor is braided with aluminum foil longitudinally wrapped with aluminum-magnesium alloy wire or tinned copper wire; with a PVC or PE outer sheath.
Attenuation
Attenuation | [@68o F. (20o C.)] | |
Impedance | 75±3 Ohm | |
Capacitance | 16.0pF. /Ft. Nom. | |
Velocity of Propagation | 66.7% | |
Return Loss | 20dB min (5-860MHz) | 15dB min(860-2500MHz). |
Frequency (MHz) | Maximum (dB/100 ft.) | Maximum (dB/100 m) |
5 | 0.86 | 2.82 |
55 | 1.95 | 6.39 |
187 | 3.60 | 11.81 |
250 | 4.00 | 13.11 |
300 | 4.45 | 14.6 |
350 | 4.64 | 15.21 |
400 | 4.88 | 16.00 |
450 | 5.40 | 17.72 |
500 | 5.60 | 18.36 |
550 | 5.90 | 19.34 |
600 | 6.20 | 20.34 |
750 | 6.97 | 22.87 |
865 | 7.52 | 24.67 |
1000 | 8.12 | 26.64 |
With our leading technology at the same time as our spirit of innovation, mutual cooperation, benefits and advancement, we will build a prosperous future with each other with your esteemed firm for Coaxial Cable Rg59+Power Cable CCTV Camera Video Siamese Security Communication. We are in line with international trends, and continues to develop a reasonable structural model. With global market competition intensified, in order to enhance the competitiveness, we try to design reasonable scheduling schemes to satisfy demands of customer for diversification and personalization, improve customer satisfaction, shorten production cycle and deliver just-in-time.
