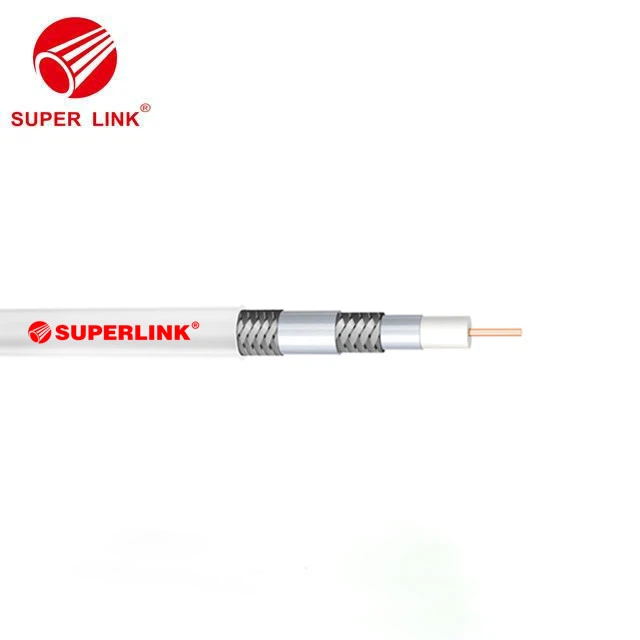

Coaxial Cable RG6 Quad Shield
Product Introduction
We provide our customers with excellent CE Ccs Wire,Steel Welding Wire,Copper Wire, LOCAL COMMUNICATION CATE5E CABLE HIGH SPEED, CAT5E FTP RJ45 CRYSTAL HEAD by taking quality as the foundation, innovation as the driving force, and industry standards as the criterion. 'Focus and innovation' is our long-term market development strategy, so that our products always maintain the leading position in the industry. We sincerely hope to cooperate with domestic and foreign merchants and jointly create brilliant career.
Application
For Use in longer CATV Run Lengths
Construction Parameters
Inner Conductor | 0.040/1.02mm/18AWG Copper-Clad Steel |
Dielectric | 0.18/4.57mm Foamed PE(Gas Expanded Polyethylene) |
Shield 1 | 0.18/4.75mm Bonded Aluminum Polyproylene |
Shield 2 | Aluminum braid wire 60% coverage |
Shield 3 | 0.187/4.75mm Bonded Aluminum Polyproylene |
Shield 4 | Aluminum braid wire 60% coverage |
Jacket | 0.268±0.006/7.6±0.15mm PVC (CMR or CMG) |
Jacket Thickness | 0.030/0.76mm |
Electrical Characteristics
Inner Conductor Resistance | The Max. at 20℃ shall be < 87 Ω/km 26.6Ω/1000ft |
Capacitance | 52 ±3 pF/m 15.9 ±0.9 pF/ft |
Impedance | 75 ± 3 Ω |
Return loss | between 5 and 1000MHz: > 22dB |
Velocity of Propagation | 0.85 |
Sparker Test (VAC) | 4 |
Attenuation(20℃)
Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
5 | 0.58 | 1.9 |
187 | 2.85 | 9.35 |
211 | 3.05 | 10.00 |
350 | 3.85 | 12.63 |
450 | 4.4 | 14.43 |
550 | 4.9 | 16.08 |
750 | 5.65 | 18.54 |
To enable consumers to buy and use with confidence, we conduct a complete series of strict tests on all parts of the Coaxial Cable RG6 Quad Shield, and strictly control every detail. We believe that our company would develop and grow consistently in the industry abiding by the concept of technological innovation and relying on perfect quality. We have been willing to establish long business relationship with all those who seek the high quality products and good service.
