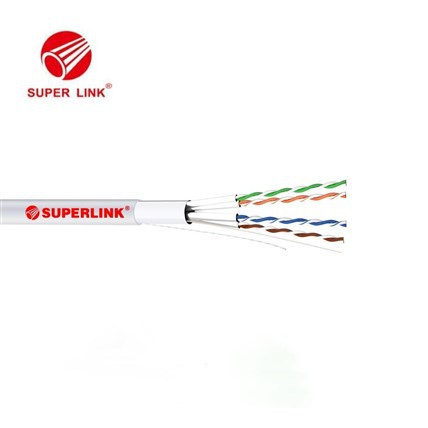

FTP CAT6 4 Twisted Pairs Shielded Category 6 Ethernet Cable
Mutual capactitance (max): 5.6nF/100m;
Unbalanced capacitance (max): 330pF/100m
Send Inquiry
Product Details of FTP CAT6 4 Twisted Pairs Shielded Category 6 Ethernet Cable
Product Introduction
To be an top-notch enterprise that manufacturing SFTP Cate5e LAN Cable, CCTV Coaxial Cable Kx6, RG6 Coaxial Cable Bnc Connectors is our company's development of strategic objectives in recent years. We will continue to develop, to provide the high-quality products and services, and promote lasting cooperation with our customers and create a better future. Our company in line with the principle of reputation first, small profits and quick turnover.
Conductor
Construction | Material | Nominal size |
Inner conductor | Copper | Φ0.57mm |
Insulation | Polyethylene PE | Φ0.92±0.03mm |
Shield1 | AL/Copper Foil | |
Shield2 | Drain wire 0.5CCA/Copper/TC | |
Rip cord | Nylon Material(Available) | |
Outer sheath | PVC | Φ5.6±0.4mm |
Characteristics
Frequency | Attenuation Max | IL(max) | Next (min) | PSNEXT (min) | ELFEXT Min. | PSACR-F (min) |
(MH)z | (dB/100m) | (dB/100M) | (dB) | (dB) | (dB/100m) | (dB/100m) |
1 | 1.9 | 2.2 | 74.1 | 72.1 | 67.4 | 64.4 |
4 | 3.7 | 3.8 | 65.4 | 63.5 | 54.6 | 52.5 |
10 | 5.9 | 6.0 | 59.6 | 57.9 | 48.1 | 44.6 |
16 | 7.5 | 7.6 | 56.1 | 53.1 | 43.5 | 40.4 |
20 | 8.4 | 8.5 | 55.9 | 52.3 | 42.0 | 38.6 |
31.25 | 10.6 | 10.7 | 52.2 | 51.0 | 37.9 | 34.2 |
62.5 | 15.4 | 15.4 | 47.4 | 46.5 | 32 | 28.6 |
100 | 19.8 | 19.8 | 44.4 | 41.2 | 27.6 | 24.5 |
200 | 29.0 | 29.0 | 39.6 | 37.8 | 21.5 | 18.6 |
250 | 32.8 | 32.8 | 38.3 | 36.3 | 20 | 16.1 |
Application
1.Computer network cabling project
2.Broadband network communication
3.Digital ISDN and ATM 155Mbps network
4.Ethernet network
5.Audio and data transmission.
DC resistance (max) | 4.8Ω/100m at 20°C |
Mutual capactitance (max) | 5.6nF/100m; |
Unbalanced capacitance (max) | 330pF/100m |
Dielectric strength between conductors (min) | 2.5kV/2s |
Impedance | 1-250MHz 100±15Ω |
Differential phase delay (max) | 45ns/100m |
Operating temperature | -20~+60°C |
Permitted bend radius | 10 times diameter of the cable |
A clear awareness of quality and service, a rigorous and meticulous working attitude have made our FTP CAT6 4 Twisted Pairs Shielded Category 6 Ethernet Cable and services have won the unanimity of users. We firmly believe that: we are outstanding as we are specialized. If you are fascinated in any of our products, you should come to feel no cost to call us for more aspects.
