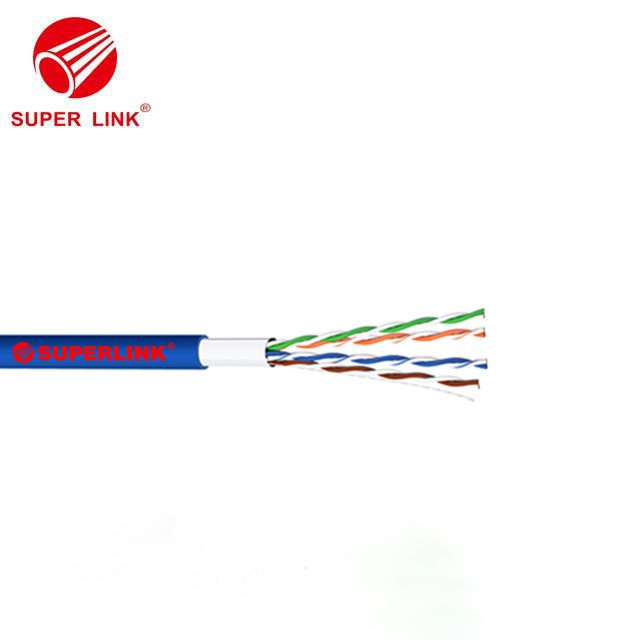

LAN Cable UTP Cat 5e 4p for Computer Connection, and Data Communication Cable Category 5e
Category 5e and ISO 11801 2nd Edition Class D channel standards
2 Third party tested to Category 5e channel compliance.
Send Inquiry
Product Details of LAN Cable UTP Cat 5e 4p for Computer Connection, and Data Communication Cable Category 5e
Product Introduction
As soon as the series of CAT7 FTP PATCH CABLE, 20-200pair Armored Underground Telephone Cable, CAT 6A U/UTP LAN CABLE were launched, they achieved very good results in the market and sales continued to hit new records. We adhere to the mission of 'making products intelligent and service intimate'. We are adhering to the brand concept of 'creating high-quality goods, brand upgrading, customer orientation, service first', constantly researching and exploring, improving ourselves, and keeping up with the pace of the times. Give us a chance and we will prove our capability. Now we have experienced manufacturing facilities with extra than 100 employees.
Electronic Characteristics
Impedance: 100± 15(ohms)
Rated Temperture: 75º C
DC Resistance unbalance(%): Max2.5
DC Resistance 20º C: 8.4(Ohms/100m)
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Transfer Impendance: Max 10 mohms/m@100MHz
Installation Resistance: >5000MΩ *KM
Dielectric strength: DC 2500V 2S
Technical Performance
Frequency | Return loss | Attenuation | NEXT | FEXT |
1 | 20.00 | 2.10 | 64 | 63.8 |
4 | 23.01 | 4.30 | 55 | 51.7 |
10 | 25.00 | 6.60 | 49 | 43.8 |
16 | 25.00 | 8.20 | 46 | 39.7 |
20 | 25.00 | 9.20 | 44 | 37.7 |
31.25 | 23.64 | 11.80 | 42 | 33.8 |
62 | 21.54 | 17.10 | 37 | 27.6 |
100 | 20.11 | 22.00 | 34 | 23.6 |
Application
1 Meets or exceeds requirements of ANSI/TIA-568-C.2
Category 5e and ISO 11801 2nd Edition Class D channel standards
2 Third party tested to Category 5e channel compliance.
3 Used in station and all networking requirement(ISDN),ATM155Mbps,100Mbps TPDDI.
4 Certification: ISO9001; CE; ROHS; CPR
5 Standard: UL758,UL1581,UL444,TIA/EIA-568,CSA C22.2,ISO/IEC 11801,YD/T1019-2013
We have developed a variety of high-quality and efficient LAN Cable UTP Cat 5e 4p for Computer Connection, and Data Communication Cable Category 5e to enhance the overall technical level and image of the industry. Our company takes strong technical force and high-quality products as the principle of unremitting progress. We've a good reputation for stable quality solutions, well received by customers at home and abroad.
Hot Tags: lan cable utp 4p cat5e, China, manufacturers, suppliers, factory, wholesale, custom, Vietnam, Flexible Coaxial TV Cable LMR100, CT100 Low Loss Cable, RG8 Low Loss Coaxial Cable, CAT6 UTP/FTP Sturdy LAN Cable, LOCAL COMMUNICATION CATE5E CABLE HIGH SPEED, CAT7 10 Gigabit Ethernet Cable
SPEC DATA
