Low Los 50ohm RF LMR500 Coaxial Cable with PE Jacket
Product Introduction
From raw materials to finished products, we manufacture our QR540 Aluminum Tube Cable, High Performance 50ohm LMR100 Coaxial Cable, Manufacture Coaxial Cable LMR Type LMR100 with advanced production capacity, and you can buy and use it with confidence. Our company has strong technical force, advanced management and a young team full of creativity and corporate cohesion. We are in a leading position in the industry and enjoy a high reputation among business partners. We actively advocate and improve employees' awareness of innovation, carry out technological and management innovation, and cultivate a group of high-quality engineering and technical personnel.

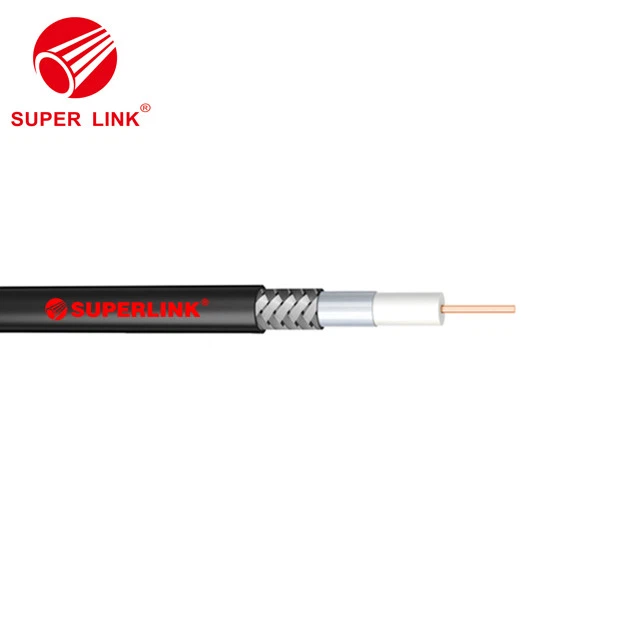

Construction
| Product structure parameters | ||
Serial number | Texture of material | diameter |
Inner conductor | Bare copper wire | Ф0.94±0.02mm |
Insulating layer | Foamed PE | Ф2.79±0.1mm |
Outer conductor | Double sided self-adhesive aluminum foil(12*0.06mm) | Ф2.98±0.1mm |
Weave | Tinned copper wire / aluminum magnesium wire | Ф3.45±0.1mm |
Product sheath | PVC / PE | Ф4.95±0.1mm |
Characteristic
| Mechanical Characteristics and Electrical Performance Parameters | |
characteristic impedance | 50±2Ω（Ohms） |
Capacitance | 83±2PF/M |
Velocity | 76% |
peak power | 2.5KW |
Sheath withstand voltage test | 3000V |
Internal conductor DC resistance | ≥24.86ohms/1000m |
DC resistance of outer conductor | ≥16.1ohms/1000m |
Cutoff Frequency（GHz） | 15G |
Operating Temperature ℃ | -40～+85℃ |
Minimum bending radius | 25mm |
Maximum drawing force | 38lb |
Product surface printing | TLMR 195 |
Cable length | 300m / volume (or as required by customers) |
Screening attenuation（﹥dB） | 90 |
VSWR voltage standing wave ratio | DC～6GHz ＜1.25 |
Application
LMR195 coaxial cable is widely used in any application, such as wll, GPS, LMR, WLAN, Wisp, SCADA, mobile antenna. LMR195cable assembly can be used in wireless communication system
Our Services
1. Any inquiry will be replied within 24 hours.
2. Professional manufacturer, 12 years manufacturing experience.
3. OEM/ODM available.
4. High quality, reasonable and competitive price, fast delivery time.
5. Good after-sales service.
1) All products go through strict internal quality inspection before packing.

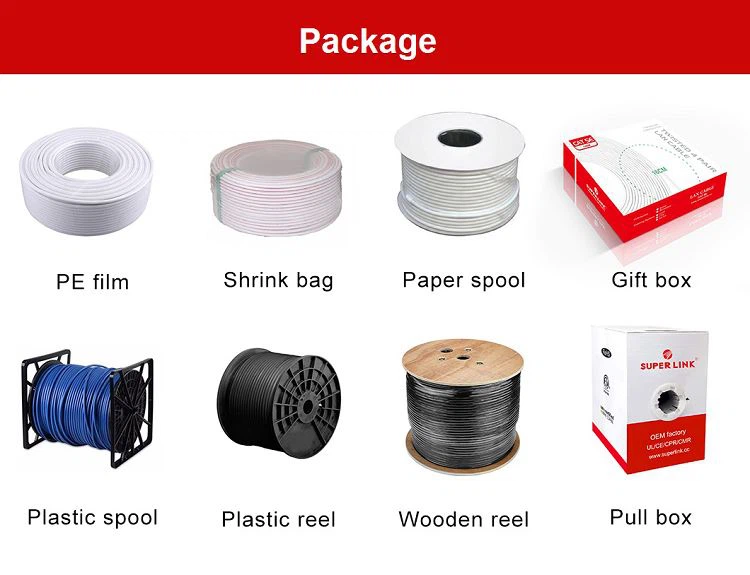

2) All products will be packed well before shipment.
6. Faster delivery:
Sample order is in stock, mass production takes 5-7 days.
Our Low Los 50ohm RF LMR500 Coaxial Cable with PE Jacket has won unanimous praise from customers because of their novel design, reliable quality, and beautiful appearance. We are dedicated to providing you with the best products and the most thoughtful service with professional management concepts, high quality products, and the business philosophy of excellence. We have a sales team specializing in international business.
