75OHM KX6 Coaxial Cable Siamese Satellite
75Ohm KX 6 Coaxial Cable | |

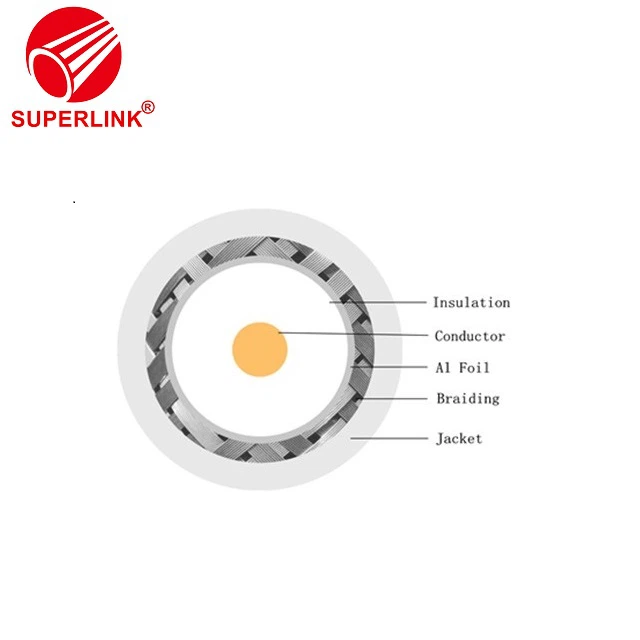

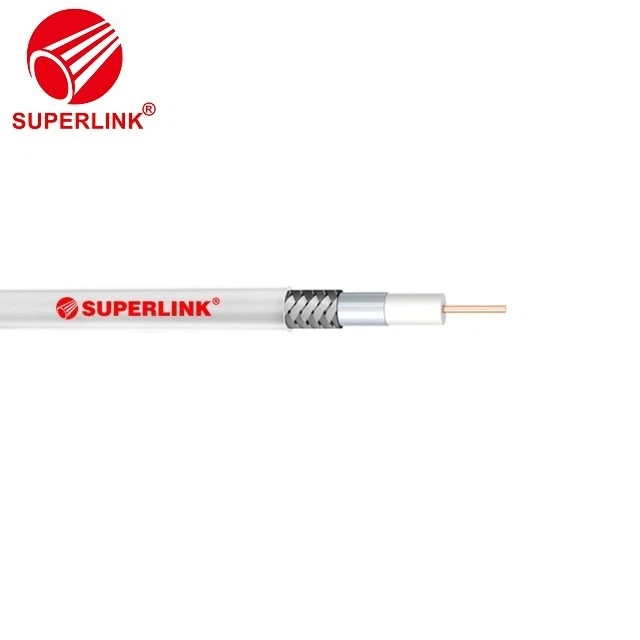

Conductor | 18AWG (1.02mm)CCS |
Insulation | 4.57mm Foam PE |
First shield | Bonded Al Foil |
Second shield | Al-Mg / Bare Copper Braid |
64/0.12mm | |
Sheath | 6.8mm PVC |
Features
1) Supports high-definition TV and enhanced-definition TV (420p) signals.
2) High-purity, fine-stranded copper conductors for enhanced high-frequency response and ultralow attenuation.
3) Gold plated connections for accurate transmission of signals.
4) Split-tip center pin for a tight connection and enhanced contact pressure.
5) Precision 75-ohm impedance design.
6) Nitrogen-gas-injected dielectric insulation.
7) High-end Digital Coaxial Cable with pearl white PVC jacket.
8) Available in both white and black.
Characteristics | |||
Nominal Impedance | 75 | Sparker Test (VAC) | 4000 |
Nominal Velocity Propagation (%) | 85 | SRL (dB) | 20 |
Nominal Capacitance ( pF/m) | 50 |
Attenuation [@68F.(20Degree centigrade)]
Frequency Mhz | dB/100M |
10 | 4.4 |
50 | 6.3 |
100 | 8.85 |
200 | 10.78 |
400 | 13.50 |
700 | 21.40 |
800 | 23.10 |
1000 | 26.40 |

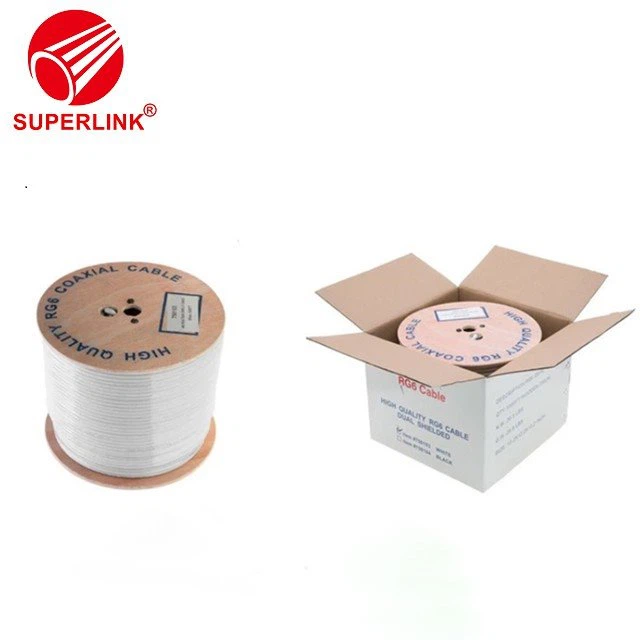

Inner Packing:
100m/roll, 200m/roll
305m (1,000ft) wooden reel, wooden drum, plastic drum
Outer Packing:
Wooden Drum, Carton Box, Pull Out Box
