CCTV Coaxial Cable Kx6

Center Conductor: 7*0.20±0.01 mm Stranded Bare Copper Dielectric: 3.7±0.05 mm Solid PE Shield: Foil optional

Send Inquiry

Product Details ofCCTV Coaxial Cable Kx6

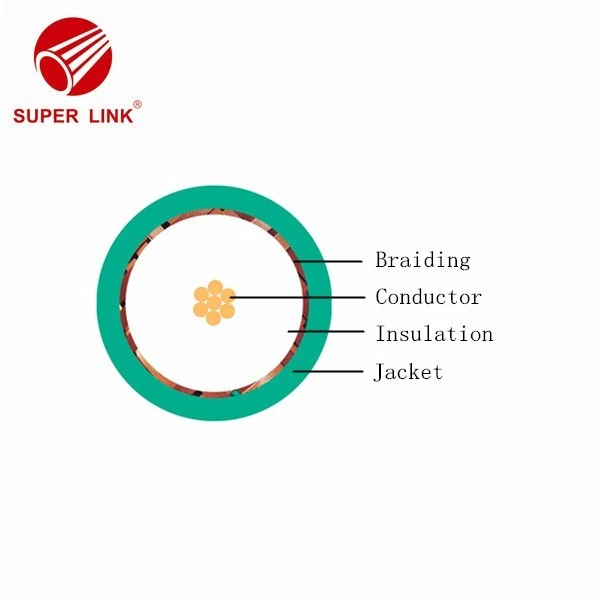

Construction

Center Conductor: 7*0.20±0.01mm Stranded Bare Copper

Dielectric: 3.7±0.05mm Solid PE

Shield: Foil optional

Braid Coverage: 85 - 95%% Cu or CCA wires

Jacket: 6.15±0.05mm PVC (Green)

Characteristics

Spark Test: 4000VAC

Impedance: 75±3 Ohm

Capacitance: 52±3pF/m

Velocity of Propagation: 66%

Return Loss 20dB min (5-2300MHz)

Attenuation Sheet
