Aluminum Tape Layer Loose Tube Outdoor Cable GYTA
Aluminum Tape layer Loose Tube Outdoor Cable GYTA

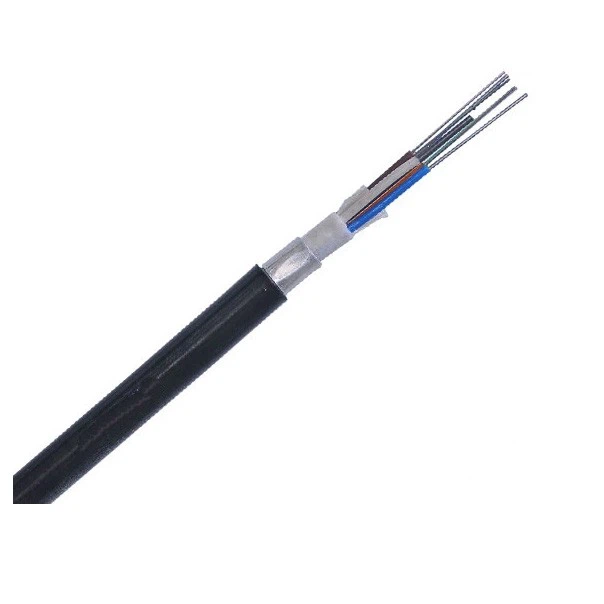

2~144 fibers, central strength member (steel), jelly filled, fiber contained loose tube and PP filler (if necessary) stranded, water blocking jelly, longitudinally covered by copolymer aluminum tape, PE outer sheath. G652D SM fiber, detailed specification on your request.
Features :
Low dispersion and attenuation
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental
Properties
The armoring of corrugate steel tape make cable have nice properties of moisture resistance and crush resistance
With small cable diameter, light cable weight, easily to lay
Operating Temperature : -40~+60 ℃
Description
Loose tube style, optical fiber cable with metallic central strength member of steel wire/strand and moisture barrier inner sheathed. Cable protected by a black PE over sheath, suitable for duct or aerial application. Tubes contain optical single-mode or multimode fibers colour coded as per color coding scheme.
Parameter
Fiber count | Cable dia.(mm) | Cable net weight (Kg/km) | Min. bending radius(mm) | Min. tensile strength(N) | Min. crush pressure(N/100mm) | |||
Static state | Dynamic state | Short term | Long term | Short term | Long term | |||
-30 | 11 | 106 | 110 | 220 | 1500 | 600 | 1000 | 300 |
32-36 | 11.6 | 126 | 120 | 240 | 1500 | 600 | 1000 | 300 |
38-60 | 12.3 | 135 | 130 | 260 | 1500 | 600 | 1000 | 300 |
62-72 | 13.1 | 168 | 140 | 280 | 1500 | 600 | 1000 | 300 |
74-84 | 13.9 | 184 | 140 | 280 | 1500 | 600 | 1000 | 300 |
86-96 | 14.7 | 202 | 150 | 300 | 1600 | 600 | 1000 | 300 |
98-108 | 15.5 | 220 | 160 | 320 | 1800 | 600 | 1000 | 300 |
110-120 | 16.3 | 239 | 170 | 340 | 1900 | 600 | 1000 | 300 |
122-132 | 17.1 | 259 | 180 | 360 | 2100 | 600 | 1000 | 300 |
134-144 | 17.9 | 280 | 180 | 360 | 2200 | 600 | 1000 | 300 |
