CAT5e FTP Network Cable
Rated temperature: 70 degree

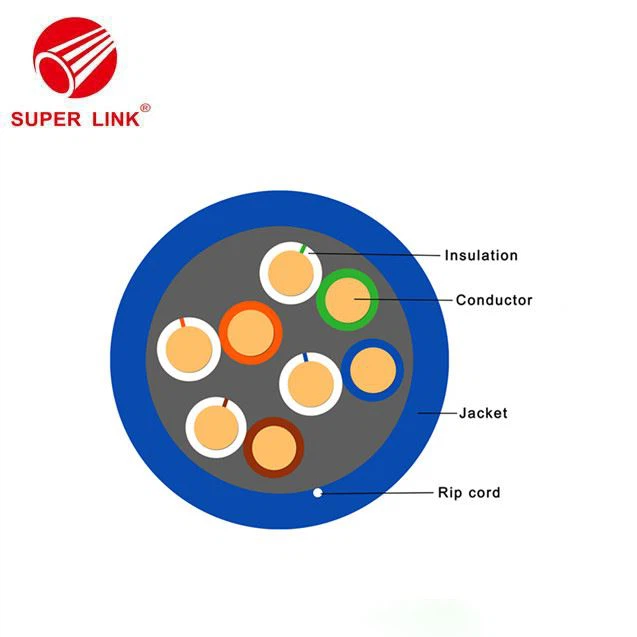

Bare solid or stranded copper conductor, Copper wire diameter: 0.5mm (24AWG)
Wire insulation: Colour-coded PE insulation
FTP: With Mylar and ground wire and AL foil
PVC or LSOH jacket
Standard: ANSI/ EIA/ TIA-568A, UL444, IEC11801.61156, IEC 60332-1 CE, RoHS available
305m/box(1000FT)
insertion loss | RL | NEXT | PSNEXT | PSELFEXT | LCL | ||||||
solid | stranded | solid | stranded | solid | stranded | solid | stranded | solid | stranded | solid | stranded |
2 | 2.4 | 20 | 20 | 74.3 | 72.3 | 64.8 | 40 | ||||
3.8 | 4.6 | 23 | 23 | 65.4 | 63.3 | 52.8 | 40 | ||||
5.3 | 6.4 | 24.5 | 24.5 | 60.8 | 58.8 | 46.7 | 40 | ||||
6 | 7.2 | 25 | 25 | 59.3 | 57.3 | 40.7 | 38 | ||||
7.6 | 9.1 | 25 | 25 | 56.3 | 54.3 | 40.7 | 38 | ||||
8.5 | 10.2 | 24.3 | 25 | 54.8 | 52.8 | 38.8 | 37 | ||||
9.5 | 11.4 | 24.3 | 24.2 | 53.3 | 51.3 | 36.8 | 36 | ||||
10.7 | 12.8 | 23.6 | 23.3 | 51.9 | 49.9 | 34.9 | 35.7 | ||||
15.4 | 18.5 | 21.5 | 20.7 | 47.7 | 45.4 | 28.9 | 32 | ||||
19.8 | 23.8 | 20.1 | 19 | 44.3 | 42.3 | 24.8 | 30 | ||||
29 | 34.8 | 18 | 16.4 | 39.8 | 37.8 | 18.8 | 27 | ||||
32.8 | 39.4 | 17.3 | 15.6 | 38.3 | 26.8 | 16.8 | 26 | ||||
Application:
Local Communication Cable
Coaxial Cable, LAN Cable
Fiber Optic Cable
Long Distance Symmetric Cable
RF Cable, Submarine Cable
