Indoor SFTP CAT6 LAN Cable
Product Description

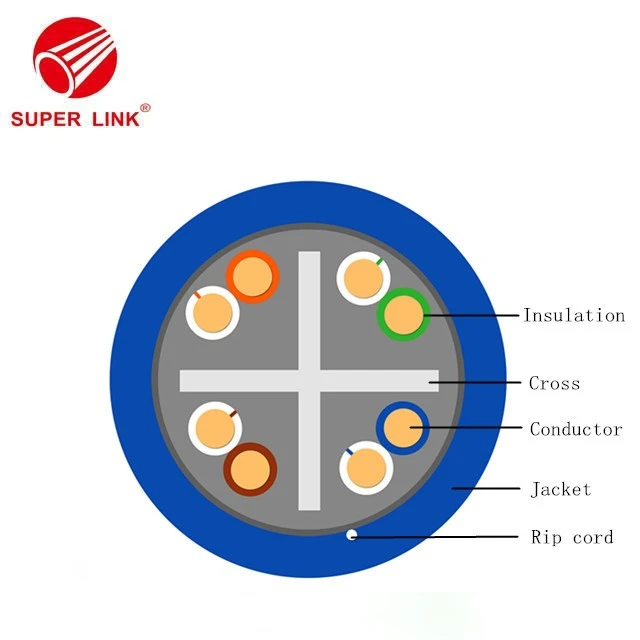

Model | Network Cable Cat6 |
Conductor Material | CU |
Conductor | 4Pair 23AWG |
Conductor Dia. | 0.5mm/0.52mm/0.54mm/0.56mm/0.57mm |
Insulation | 1.PE |
2.HD-PE (High density polyethylene) | |
Insulation Dia. | 1.024mm |
Cross Center | Cross Center |
Shielding | UTP/FTP/SFTP |
Ripcord | Ripcord |
Jacket | PVC,LSZH,PE |
Nom. Thickness(mm) | 0.65mm |
Color | Optional |
Electrical Characteristics
Impedance:1-250MHZ 100±15（Ohms）
Rated Temperature:-20 - +75℃
DC Resistance Unbalance(%): Max2.5
DC Resistance 20℃： 8.4（Ohms/100m）
Pair-to-Ground Capacitance Unbalance: 330(pF/100M)
Insulation Resistance:＞5000MΩ·Km
Dielectric strength: DC 2500V 2S
