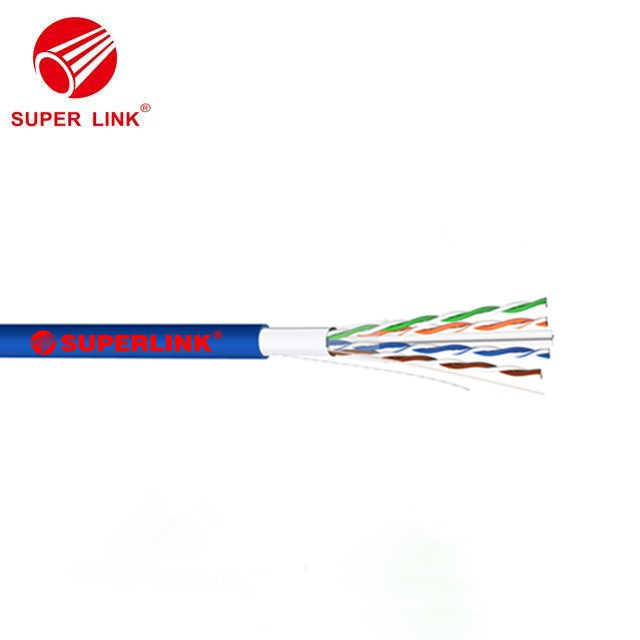

Shielded CAT6 Network Cable
Mutual capactitance (max): 5.6nF/100m;
Unbalanced capacitance (max): 330pF/100m
Send Inquiry
Product Details ofShielded CAT6 Network Cable
Conductor
Construction | Material | Nominal size |
Inner conductor | Copper | Φ0.57mm |
Insulation | Polyethylene PE | Φ0.92±0.03mm |
Shield1 | AL/Copper Foil | |
Shield2 | Drain wire 0.5CCA/Copper/TC | |
Rip cord | Nylon Material(Available) | |
Outer sheath | PVC | Φ5.6±0.4mm |
Characteristics
Frequency | Attenuation Max | IL(max) | Next (min) | PSNEXT (min) | ELFEXT Min. | PSACR-F (min) |
(MH)z | (dB/100m) | (dB/100M) | (dB) | (dB) | (dB/100m) | (dB/100m) |
1 | 1.9 | 2.2 | 74.1 | 72.1 | 67.4 | 64.4 |
4 | 3.7 | 3.8 | 65.4 | 63.5 | 54.6 | 52.5 |
10 | 5.9 | 6.0 | 59.6 | 57.9 | 48.1 | 44.6 |
16 | 7.5 | 7.6 | 56.1 | 53.1 | 43.5 | 40.4 |
20 | 8.4 | 8.5 | 55.9 | 52.3 | 42.0 | 38.6 |
31.25 | 10.6 | 10.7 | 52.2 | 51.0 | 37.9 | 34.2 |
62.5 | 15.4 | 15.4 | 47.4 | 46.5 | 32 | 28.6 |
100 | 19.8 | 19.8 | 44.4 | 41.2 | 27.6 | 24.5 |
200 | 29.0 | 29.0 | 39.6 | 37.8 | 21.5 | 18.6 |
250 | 32.8 | 32.8 | 38.3 | 36.3 | 20 | 16.1 |
Application
1.Computer network cabling project
2.Broadband network communication
3.Digital ISDN and ATM 155Mbps network
4.Ethernet network
5.Audio and data transmission.
DC resistance (max) | 4.8Ω/100m at 20°C |
Mutual capactitance (max) | 5.6nF/100m; |
Unbalanced capacitance (max) | 330pF/100m |
Dielectric strength between conductors (min) | 2.5kV/2s |
Impedance | 1-250MHz 100±15Ω |
Differential phase delay (max) | 45ns/100m |
Operating temperature | -20~+60°C |
Permitted bend radius | 10 times diameter of the cable |
