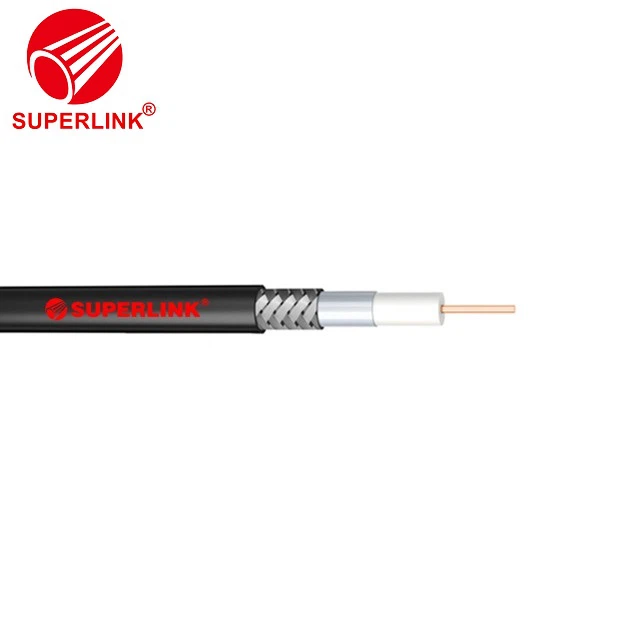

75 Ohm Stranded Conductor Coaxial Cable CT100
Type: | Insulated |
Conductor Type: | Stranded |
Application: | Overhead, Heating, Underground |
Conductor Material: | BC/CCS |
Sheath Material: | PVC |
Insulation Material: | FPE |
Application:

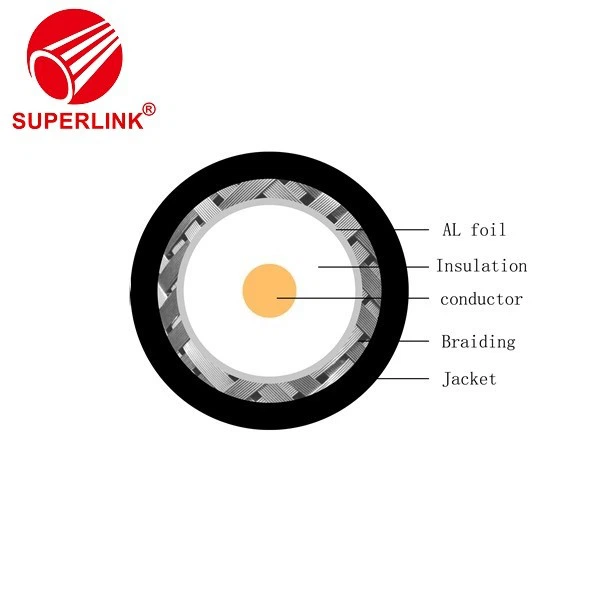

1) Inner conductor: BC/CCS
2) Dielectric: FPE
3) AL Foil: Bonded, non-bonded, single, double
4) Braiding wire material: Cu, Al-Mg, TC
5) Braiding wire diameter: 0.11mm, 0.12mm, 0.13mm, 0.14mm, 0.15mm, 0.16mm
6) Braiding net: 32,48, 64, 72, 80, 96, 112,128 and more
7) Coverage: 40%, 50%, 60%, 80% and more
8) PVC Degree: 65, 68, 70, 75
9) color: Black, white
10) OEM and customers designation are welcome

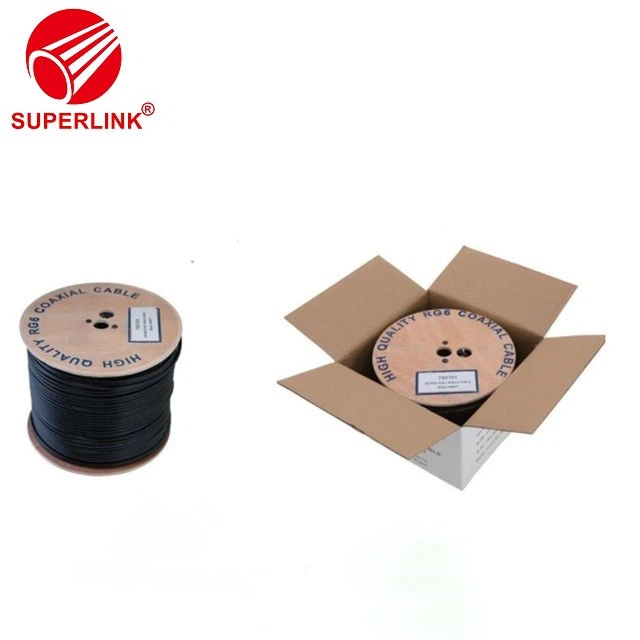

Packing
1) Inner packing: 100m in PE film, 100m in plastic/wood spool, 305m/wood drum, 500m/wood drum
2) Outer packing: Carton, wooden drum
3) Other packing available according to clients requests.
Attenuation(@20ºC) | ||
Frequency (MHz) | Max Attenuation (dB/100FT) | Max Attenuation (dB/100M) |
5 | 0.9 | 2.8 |
55 | 2.1 | 6.6 |
187 | 3.6 | 11.8 |
211 | 3.8 | 12.5 |
400 | 5.1 | 16.7 |
500 | 5.7 | 18.7 |
750 | 7.0 | 22.8 |
860 | 7.5 | 24.6 |
1000 | 8.0 | 26.3 |
1500 | 9.9 | 32.5 |
1800 | 10.9 | 35.6 |
2200 | 12.6 | 41.2 |
3000 | 13.8 | 45.2 |
