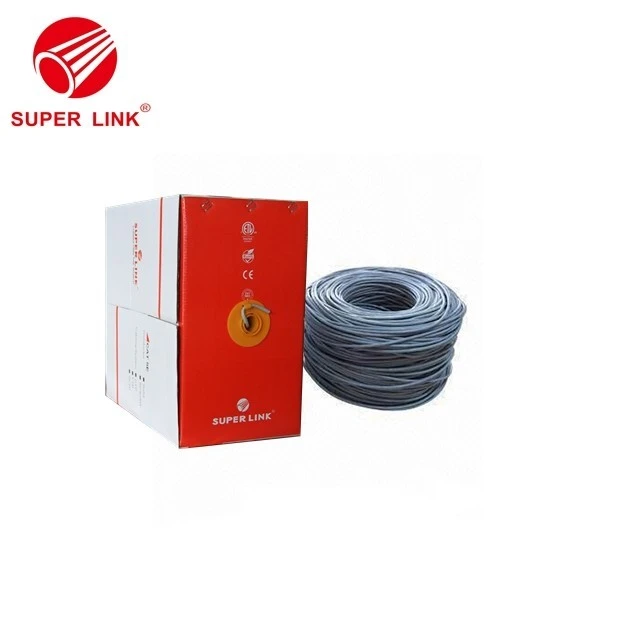

26AWG UTP CAT5E Ethernet Cable
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE;
Send Inquiry
Product Details of26AWG UTP CAT5E Ethernet Cable

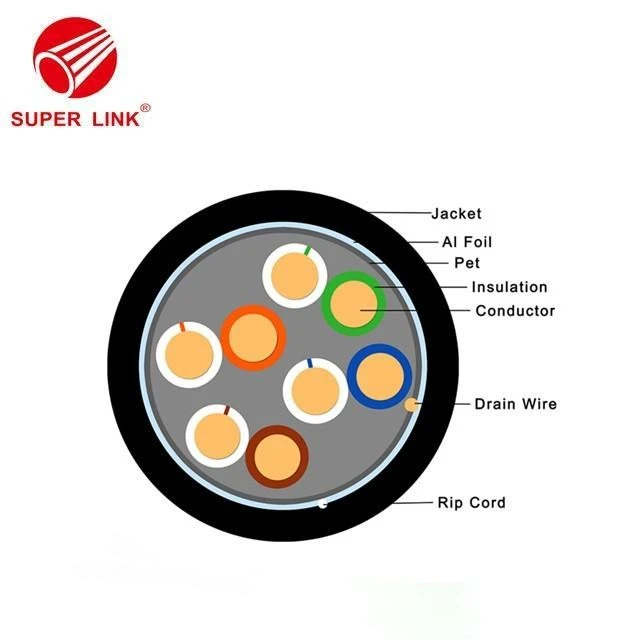

Material Instruction
1.CCA or 24AWG Soft Plain Copper
2.Eco-friendly,pollution-free and new materials selected.Promise new material only
3.Insulation: Solid HDPE
4.Eco-friendly PVC/LSZH Jacket , high-temperature resistance,long working life
Application
1 Meets or exceeds requirements of ANSI/TIA-568-C.2
Category 5e and ISO 11801 2nd Edition Class D channel standards
2 Third party tested to Category 5e channel compliance
3 Used in station and all networking requirement(ISDN),ATM155Mbps,100Mbps TPDDI
4 Certification: ISO9001; CE; ROHS; CPR
5 Standard: UL758,UL1581,UL444,TIA/EIA-568,CSA C22.2,ISO/IEC 11801,YD/T1019-2013
Electrical Performance
Impedance 1.0-100.0MHz (ohms) | 100±15 |
D.C, Resistance @20ºC(ohms/km) | ≤9.5 |
D.C. Resistance Unbalance(%) | Max 2.5 |
Insulation Resistance | >5000MΩ*KM |
Rated Temperature | 70ºC |
